Braked BV Image

Braked BV.

The perfect Box Van Trailer - whatever you need to carry, there’s an Ifor Williams Box Trailer to suit your needs. The perfect shape to maximise the load space and manufactured from robust materials, this is the trailer that will keep on working no matter what you throw at it.

Ifor Williams Box Van Trailers are available in a choice of three height options, three width options and three length options. Our larger Box Van Trailers are ideal for those moving house and transporting equipment and goods in a variety of sectors. Smaller Box Trailer models are available with a choice of single or twin axles.


Box Trailer models are offered with roller shutter, combination ramp & doors or van rear doors, ensuring your Box Van Trailer is perfect for your needs. The cargo tracks are fitted as standard and the resin coated plywood floor (18mm up to 2700ok, 21mm for 3500kg models) ensure the trailers are easy to load and unload which is essential for any trailer in regular use. The steel framed white composite coated 14mm plywood side panels are tough, smart and easy to clean and therefore ideal for any type of road. They provide the classic ‘blank canvas’ ready to be wrapped with graphics and logos giving you that added business edge and brand exposure.


Our Box Van trailers feature a tapered front section to maximise space and reduce drag. The increase in fuel economy makes a real difference when you are covering long distances. All our Braked Box Van Trailers feature the exclusive Ifor Williams Paraflex™ spring and beam axle system which has been developed for a safe and stable ride. Similar systems are widely used on commercial vehicles, where performance under load is essential. Renowned for its durability and ease of maintenance, the Ifor Williams Paraflex™ spring and beam axle system contributes significantly to the low depreciation of our Trailers.


To find out more have a look at our model details, key features, specifications, and accessories. You can also view our Box Van brochure which contains all the information you will need before purchasing your high-quality Ifor Williams Box Van Trailer.

Key Features

The Key Features of our Boxvan range.

Roller Shutter Door Image

Roller Shutter Door

The rear of your Box Van can be fitted with a standard Roller Shutter Door.

Front Loading/Inspection Door Image

Front Loading/Inspection Door

For ease of access, our Braked BV comes with a Front Door, next to the Drawbar to allow easy entry when loading or unloading.

Cargo Tracks Image

Cargo Tracks

Fitted as Standard to our Box Vans. These Cargo Tracks can be used alongside our Load Restraint Poles.

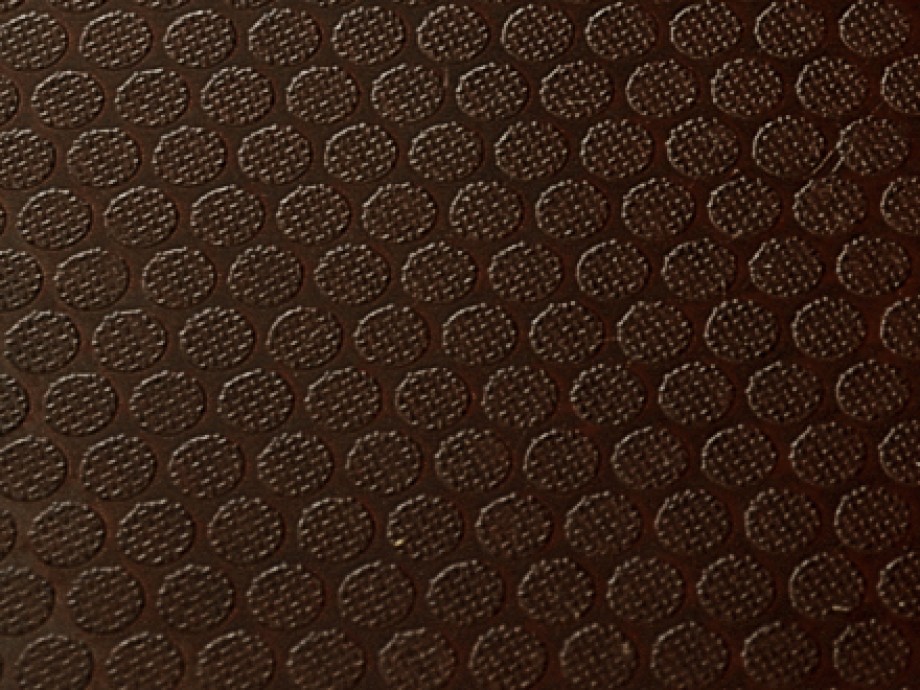

Resin Coated Plywood Platform Image

Resin Coated Plywood Platform

18mm & 21mm Grip-top, Resin Coated Plywood Flooring.

Spare Wheel & Carrier Image

Spare Wheel & Carrier

If you want extra peace of mind with your trailer or you regularly travel long distances with your Trailer, then why not have the addition of a Spare Wheel Carrier and Spare Wheel to get yourself back on the road quickly.

Security Marking Image

Security Marking

The Serial Number is either cut into the Drawbar or engraved onto the Chassis of the trailer.

Accessories

Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.

PROP STAND KIT Image

PROP STAND KIT

Why not add extra stability to your trailer during loading with the addition of our Manual Prop Stands, which are bolted to the rear of the chassis.

WHEEL CHOCKS Image

WHEEL CHOCKS

Wheel Chocks are used to ensure that the trailer does not roll or move and should be placed at the front and back of a tyre. They should be placed flat against the tyre and pushed tight against the tyre treads, and always used in pairs.

LASHING RING RECESSED 500Kg Image

LASHING RING RECESSED 500Kg

Need more Lashing Points? Our Recessed Lashing Points, rated at 500kg each, are fitted into the floor at the point of manufacture offering further options for restraining your load.

SHORING POLE (BV106G) Image

SHORING POLE (BV106G)

Shoring Poles clip easily into the Cargo Rails that are fitted to the inside of the BV Trailer.

Aluminium Treadplate Floor Image

Aluminium Treadplate Floor

Your floor can be upgraded to an Aluminium Treadplate covering to add additional grip in wet conditions and for additional durability for everyday tasks.

COUPLING LOCK Image

COUPLING LOCK

Our Ifor Williams Coupling Lock fits neatly around the Coupling Head to make the theft of your trailer much more difficult. Manufactured from High-Grade Steels and a durable Powder Coated Finish. The Lock is a High Security Lock which features an Anti-Drilling Barrel. For extra piece of mind we also supply an additional High Security Barrel which will fit into a Lockable Coupling Head so that one key will open both the Coupling Lock and the Coupling Head Barrel.

Gallery


BV126 Image

BV126

BV126 Image

BV126

BV126 Image

BV126

BV126 Image

BV126

BV126 Image

BV126

BV126 Image

BV126

BV126 Image

BV126

BV126 Image

BV126

BV85 Image

BV85

BV85 Image

BV85

BV125 Image

BV125

BV85 Image

BV85

Specifications


Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
BV84 Single Axle 165R13C 1400kg 515kg 2.40m 1.17m 3.90m 1.80m
BV84 165R13C 2700kg 605kg 2.40m 1.17m 3.90m 1.80m
BV85 5' H/R 165R13C 2700kg 640kg 2.40m 1.47m 4.10m 2.10m
BV85 5' H/R Single Axle 165R13C 1400kg 550kg 2.40m 1.47m 4.10m 2.10m
BV85 6' H/R 165R13C 2700kg 675kg 2.40m 1.47m 4.10m 2.10m
BV85 6' H/R Single Axle 165R13C 1400kg 585kg 2.40m 1.47m 4.10m 2.10m
BV85 7' H/R 165R13C 2700kg 770kg 2.40m 1.47m 4.10m 2.10m
BV85 7' H/R Single Axle 165R13C 1400kg 620kg 2.40m 1.47m 4.10m 2.10m
BV105 5' H/R 165R13C 2700kg 705kg 3.00m 1.47m 4.70m 2.10m
BV105 6' H/R 165R13C 2700kg 735kg 3.00m 1.47m 4.70m 2.10m
BV105 7' H/R 165R13C 2700kg 770kg 3.00m 1.47m 4.70m 2.10m
BV125 6' H/R 165R13C 2700kg 800kg 3.60m 1.47m 5.30m 2.10m
BV125 7' H/R 165R13C 2700kg 850kg 3.60m 1.47m 5.30m 2.10m
BV106 6' H/R 155/70R12C 3500kg 900kg 3.00m 1.73m 4.70m 2.30m
BV106 7' H/R 155/70R12C 3500kg 935kg 3.00m 1.73m 4.70m 2.30m
BV126 6' H/R 155/70R12C 3500kg 980kg 3.60m 1.73m 5.35m 2.30m
BV126 7' H/R 155/70R12C 3500kg 1030kg 3.60m 1.73m 5.35m 2.30m

Brochure Downloads


Box Van Brochure
