GH Plant.
The Ifor Williams GH trailer range is one of the most robust and reliable plant trailers available with class leading payloads.
Our GH models are a fully welded galvanized trailer with a the exclusive Ifor Williams Paraflex™ leaf spring suspension and a robust chassis designed to thrive in harsh conditions. The GH range comprises of seven variants: GH64, GH94, GH94BT, GH1054, GH106, GH126 and GH146 tri-axle.

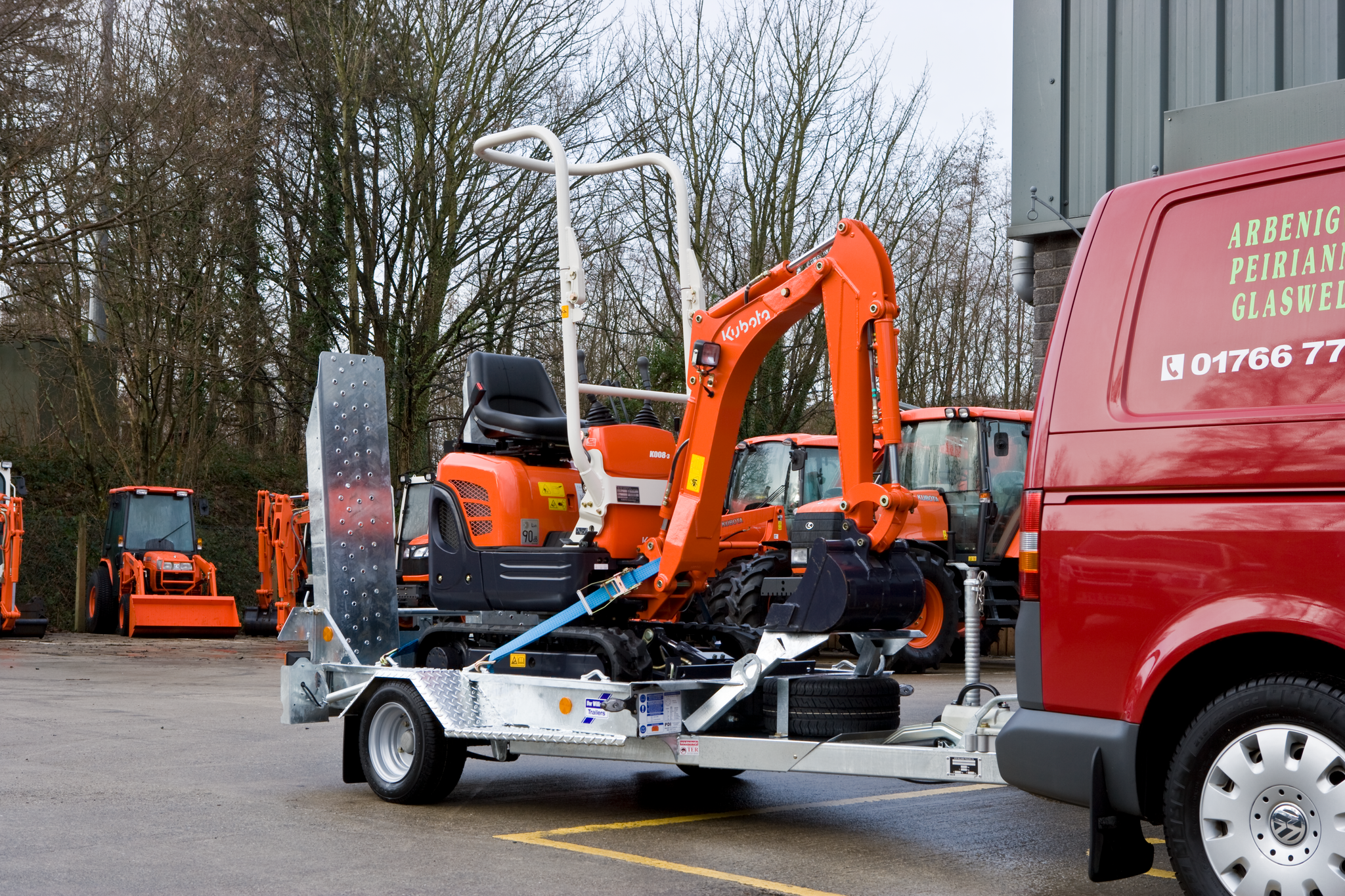

Our GH64 model is a single axle, compact, tough trailer. Great for people and companies that require a small trailer to handle the everyday tasks thrown your way. With a 1230Kg payload capacity this trailer can easily handle small items of plant machinery and micro-excavators with ease.
The GH94 has two styles, the popular GH94BT features a "beavertail" section of the bed which lowers the height at the rear of the trailer providing a 13° loading angle, making it perfect for loading and unloading plant machinery or equipment easily .
Our standard GH94 comes has a completely flatbed to maximise the flat loading area, this trailer is perfect for small excavators and any ride on equipment.
The GH1054 offers one of the highest payload capacities that Ifor Williams Trailers offers at 2835kg, achieved through advanced design and manufacturing an extensive test and validation programme and carefully selected materials. Well suited for rough and rugged terrain the heavily treaded 185/70R13C tires perform as well as they look and are fitted as standard to this trailer. This model upwards are only available with the “Beavertail” bed.
The GH106 is a trailer for those that want to move plant machinery safely and securely in one trip with a bed size of 6’ x 9’11” (1840mm x 3045mm) it has ample space for mini excavators and accessories or other types of plant and it has an excellent payload capacity of 2790kg.
The next size up is the GH126 with it 6’ x 12’ (1840mm x 3660mm) bed space with a payload of 2735kg.
The GH146 tri-axle, is the largest trailer in the GH range trailer at 6’ long and 14’ wide (1840mm x 1285mm) designed with a payload of 2500kg
All our range of GH trailers have an extremely resistant and anti-slip 24mm thick resin coated plywood platform fitted as standard; steel floor options are available. As standard all the GH trailers have a heavy-duty jockey wheel to ensure your trailer is always able to attach to your vehicle.
Bucket rests, our patented Breaker box, towing eyes and adjustable drawbars are available for the majority of the range.
Ramps/Skids
• The 1.2m (3'9") full width ramp provides the benefits of a full width ramp and is bevelled to help guide the tracks or wheels of plant being loaded.
• The 1.45m (4'9") bevelled ramp offers a reduced loading angle of 13° during loading and the ramp is bevelled to help guide the tracks or wheels of plant being loaded.
• The 1.45m (4'9") sliding skids offers all the benefits of the 1.45m bevelled ramp with further flexibility for easier loading of narrower plant e.g. access platforms.
In addition a fourth option, comprising of 1.2m (3'9") sliding skids is available for the GH1054 only. This version offers maximum payload.
Key Features
The Key Features of the GH plant trailers.
Resin Coated Plywood Platform
Our GH Trailers come fitted with a Heavy Duty, Resin Coated Plywood Floor. This offers excellent resistance to damage, whilst offering a non-slip surface for added protection. the edges of the Floor Panels are also treated to reduce the ingress of water, offering a long lasting solution.
GH Treadplate Mudguards
With a heavy duty trailer you need heavy duty mudguards, with these Treadplate Mudguards you can access your trailer from most places as well as helping you step out of the plant or equipment you have loaded.
GH Lashing Points
All of the Lashing Points are Certified by DEKRA to EN 12640.
GH Full Width Ramp
The full-width ramp is a versatile option designed to handle a wide range of loading needs. At 1.2m in height, it is ideal for most tasks and features formed holes to maximise grip during loading. Constructed from galvanised steel, it offers exceptional durability. Bevelled sides help guide tracks or wheels onto the trailer bed with ease, while the drop-in registration plate holder ensures compatibility with various towing vehicles.
GH Bevelled Ramp
Our Bevelled Ramp offers a reduced loading angle of 13° during loading and the ramp is bevelled to help guide the tracks or wheels of plant being loaded.
Bucket Rest
The Bucket Rest allows you to park the Excavator in the middle of the trailer as the Boom is raised to allow the Bucket to sit on our Integrated Bucket Rest. This ensures that the trailer is loaded correctly.
GH Spare Wheel
If you want extra peace of mind with your trailer or you regularly travel long distances with your GH, then why not have the addition of a Spare Wheel Carrier and Spare Wheel to get yourself back on the road quickly.
Security Marking
The Serial Number is either cut into the Drawbar or engraved onto the Chassis of the trailer.
Accessories
Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
ALUMINIUM TREADPLATE
Your floor can be upgraded to an Aluminium Treadplate covering to add additional grip in wet conditions that complements the galvanised finish along with additional durability for everyday tasks.

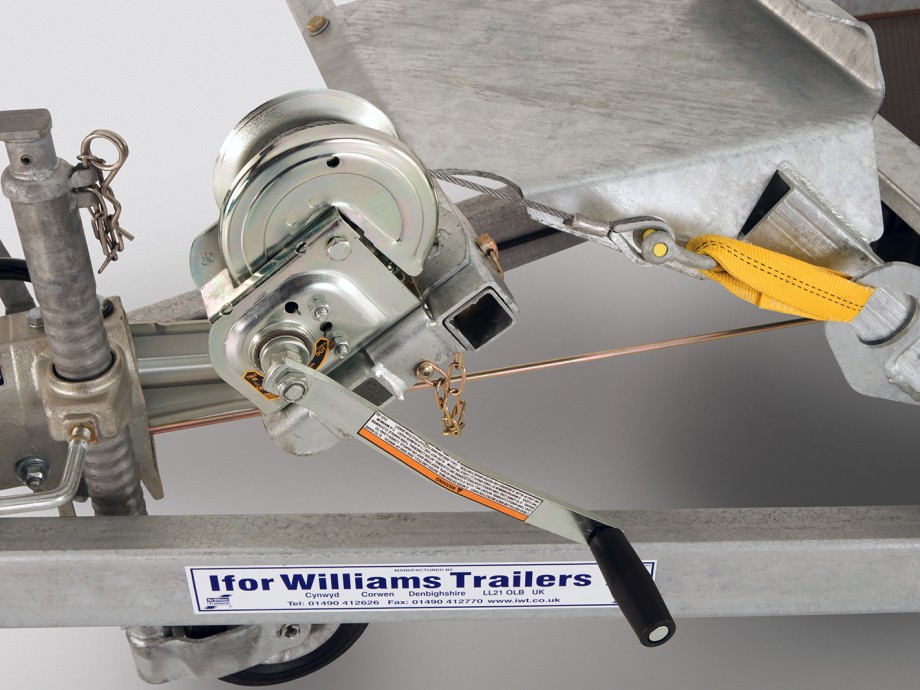

GH WINCH KIT
Why not enhance your GH Trailer and Ramp with the inclusion of a 680Kg Capacity Manual Winch? The winch is supplied with its fitting brackets and removes the strain from having to pull equipment up the ramp.
COUPLING LOCK
Our Ifor Williams Coupling Lock fits neatly around the Coupling Head to make the theft of your trailer much more difficult. Manufactured from High-Grade Steels and a durable Powder Coated Finish. The Lock is a High Security Lock which features an Anti-Drilling Barrel. For extra piece of mind we also supply an additional High Security Barrel which will fit into a Lockable Coupling Head so that one key will open both the Coupling Lock and the Coupling Head Barrel.
Accessories
Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
ALUMINIUM TREADPLATE
Your floor can be upgraded to an Aluminium Treadplate covering to add additional grip in wet conditions that complements the galvanised finish along with additional durability for everyday tasks.
GH WINCH KIT
Why not enhance your GH Trailer and Ramp with the inclusion of a 680Kg Capacity Manual Winch? The winch is supplied with its fitting brackets and removes the strain from having to pull equipment up the ramp.
COUPLING LOCK
Our Ifor Williams Coupling Lock fits neatly around the Coupling Head to make the theft of your trailer much more difficult. Manufactured from High-Grade Steels and a durable Powder Coated Finish. The Lock is a High Security Lock which features an Anti-Drilling Barrel. For extra piece of mind we also supply an additional High Security Barrel which will fit into a Lockable Coupling Head so that one key will open both the Coupling Lock and the Coupling Head Barrel.
Gallery
GH1054
GH1054
GH1054
GH126
GH64
GH94
GH94BT
GH106
Gallery
GH1054
GH1054
GH1054
GH126
GH64
GH94
GH94BT
GH106
Specifications
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| GH64 | 195/55R10C | 1500kg | 270kg | 1.88m/6'1" | 1.23m/4' | 3.66m/12' | 1.733m/5'8" |
| GH94 | 195/55R10C | 2700kg | 500kg | 2.79m/9'1" | 1.31m/4'3" | 4.587m/15' | 1.834m/6' |
| GH94BT | 165R13C | 2700kg | 530kg | 2.79m/9'1" | 1.31m/4'3" | 4.617m/15'1" | 1.778m/5'10" |
| GH1054 | 185/70R13C | 3500kg | 660kg | 3.04m/9'11" | 1.62m/5'4" | 5.009m/16'5" | 2.090m/6'10" |
| GH106 | 185/70R13C | 3500kg | 710kg | 3.045m/9'11" | 1.840m/6' | 4.956m/16'3" | 2.308m/7'6" |
| GH126 | 185/70R13C | 3500kg | 765kg | 3.660m/12' | 1.840m/6' | 5.632m/18'5" | 2.308m/7'6" |
| GH146 Tri-Axle | 185/70R13C | 3500kg | 910kg | 4.285m/14' | 1.840m/6' | 6.162m/20'2" | 2.308m/7'6" |
